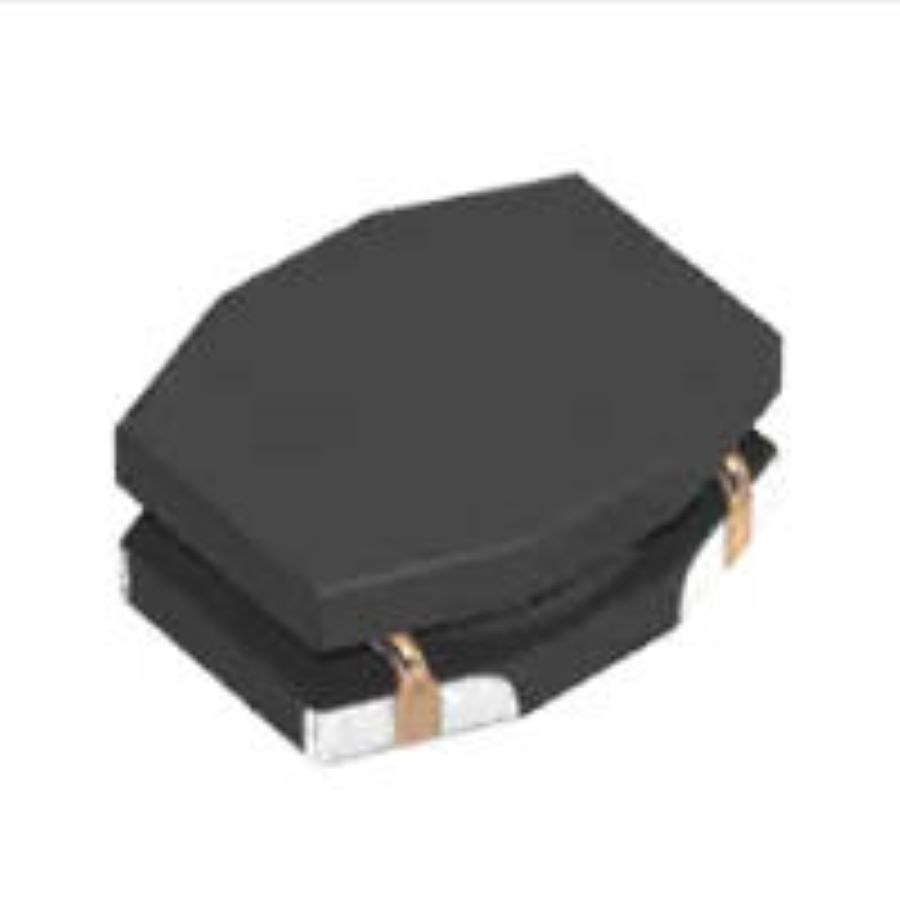

VLS252010ET-4R7M
Manufacturer:
TDK Corporation
Mfr.Part #:
VLS252010ET-4R7M
Datasheet:
Description:
Fixed Inductors 1008(2520 Metric) SMD/SMT 4.7 µH 20 % 800 mA 398 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 0.991 mm |
| Length | 2.4892 mm |
| Width | 2.0066 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Resistance | 398 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 2.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 398 mΩ |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| Max DC Current | 890 mA |
| Saturation Current | 800 mA |
| Type | Wirewound |
